Barbed Wire Making Machine






Technical Specifications
Model No NSM 24 NSM 30 NSM 36 NSM 40
Length of ram stroke 660 800 930 1025
Length of ram 1225 1600 1750 1900
Width of ram 300 300 300 330
Max. Distance from table to ram 450 520 560 600
Min. Distance from table to ram 50 50 60 60
Vertical travel of tool slide 140 160 185 200
Swiveling range of tool on either side 60 degree 60 degree 60 degree 60 degree
Table size 610 * 380 760 * 400 900 * 450 1015*508
Horizontal travel of Table 600 700 810 940
Vertical travel of Table 350 430 500 550
Nos. of speeds 4 4 4 4

Features:

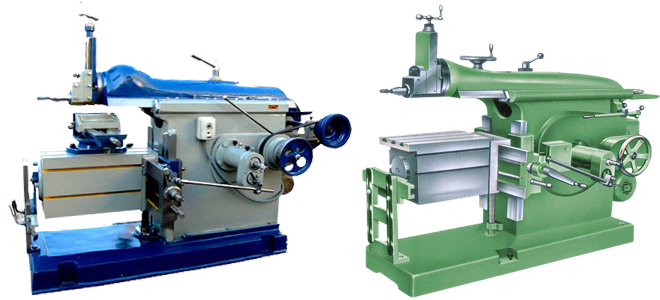

The tool head of Shaping Machine is graduated and may be swiveled to any angle up to 90 degrees
The Cross slide of Shaper Machine has long guides, with a deep frontal bearing ensuring adequate support for the table
The vertical screw is fitted with a ball thrust bearing to obtain a light and easy movement. The table universal or Fix is provided with the slots on the top as well as on one side and has bolts on the other side. The Bull wheel is cut with helical teeth to prevent chatter and ensure a smooth even drive to the ram
A reliable stroke adjusting mechanism is provided in it. The drive from the motor is by multiple V belts through a claw clutch for three different speeds
Machines can be supplied when required with a pulley drive incorporating the clutch. The automatic self acting horizontal feed motion is arranged to give 3 optional feeds per stroke of the ram. The vice of Shaper machine is of the single screw type and has deep and wide inter- changeable jaws
The swiveling base is accurately graduated. Standard accessories include one heavy duty vice having one operating handle with motor pulley
