Approximate Length Per Kg. Kilo in Meter

Strand and Barb in B.W.G	Barb Spacing 3"	Barb Spacing 4"	Barb Spacing 5"	Barb Spacing 6"
12x12	6.06	6.76	7.27	7.67
12x14	7.33	7.91	8.3	8.57
12-1/2x12-1/2	6.92	7.72	8.3	8.72
12-1/2x14	8.11	8.81	9.22	9.56
13x13	7.98	8.9	9.57	10.06
13x14	8.84	9.69	10.29	10.71
13-1/2x14	9.61	10.61	11.47	11.86
14x14	10.46	11.66	12.54	13.18
14-1/2x14-1/2	11.99	13.37	14.38	15.1
15x15	13.89	15.49	16.67	17.51
15-1/2x15-1/2	15.35	17.11	18.41	19.34

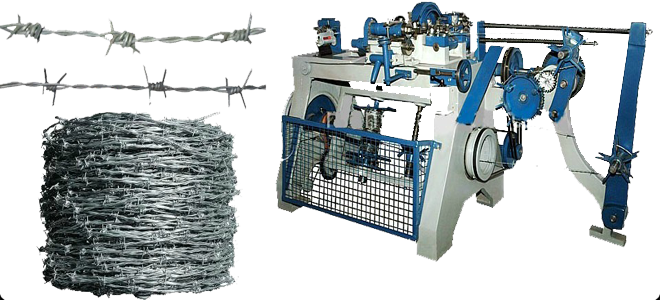

• The machine is extremely rigid to withstand overloading.
• The High Speed Winding Unit revolves at approximately 180 RPM.
• It produces both 'GLIDDEN' and 'IOVA' double ply Barbed Wire with 2 point, 4 point consecutively.

•


Model:	BWM-500
Strand and Point Wire:	12/12 SWG* (i.e. 2.64 mm diameter)
Tensile Strength:	Hard Bright, fully hot dip galvanized wire with under 30 to 55 Kg. F / mm
Production Capacity:	500 Kgs / 8 Hrs. shift for 12/12 SWG wire with 140 to 160 barbs / min. Capacity to coil bundles of 400 meters (bundle size 16" dia. x 10" width. weight: 40/50 Kgs)
Barb Spacing:	Standard: 3" & 4" pitch (optional: 5" / 6" / etc. with change parts)
Motor:	5 HP / 960 RPM
Net / Gross Weight:	1100 / 1400 Kgs.
Shipping Dimensions:	2550  x 1150 x 1250 mm
Shipping Volume:	3.70 m3

NOTE: The machine can also produce barbed wire from 14 or 15 or 16 or 17 Gauge wire (2.0 to 1.4 mm diameter) at the cost of production capacity.
