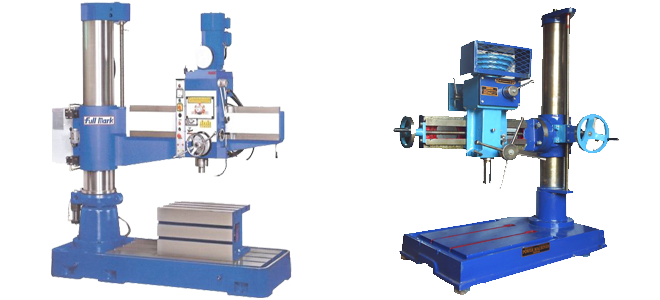

Radial Drill Machine

Item	Model	PMT-R40	PMT-R50	PMT-R65	PMT-R75	PMT-R100	PMT-R125	PMT-R150
Max. Drilling Diameter	mm	40	50	65	75	100	125	150
Distance between spindle axis column (min-max)	mm	320-320	350-1100	350-1600	450-2000	500-2500	570-3150	600-4000
Distance between spindle nose and working surface of base plate	mm	90-350	320-1220	320-1220	400-1600	550-2000	750-2000	750-2500
Vertical travel of radial arm	mm	500	550	580	800	1000	1250	1250
Travel of spindle head along arm	mm	500	900	1250	1550	2000	2580	3400
Column diameter	mm	200	310	350	450	550	700	800
Spindle diameter	mm	60	75	79	85	104	112	142
Spindle travel	mm	240	225	315	400	450	500	560
Spindle taper		Morse No. 4	Morse No. 5	Morse No. 5	Morse No. 5	Morse No. 6	Morse No. 6	Metric 80
Range of spindle speed (step)	RPM	75-1220 (6)	40-1220 (9)	25-2000 (16)	20-1600 (16)	16-1250 (16)	8-1000 (22)	63-800 (22)
Range of spindle feed (step)	mm/r	0.10-0.25 (3)	0.05-0.125 (3)	0.04-3.20 (16)	0.04-3.20 (16)	0.04-3.20 (16)	0.06-3.20 (16)	0.06-3.20 (16)
Size of worktable		400x350	400x400	500x630	630x800	800x1000	800-1250	800-1250
Main motor/arm elevation	kw	1.5/.5	2.2/1.5	3/1.5	5.5/1.5	7.5/2.2	15/3	18.5/3
Net weight of machine	kg	1800	2500	3500	7000	11000	20000	28500

Technical Features

Duly seasoned Alloyed heavy duty Castings
Dawn, Tool Slide, Main Slide all alignments with tape jib strip
Extensive lubrication by automatic lubrication system.
High quality alloy steel shafts & gears.
Inter changeability of parts ensured through standardization & quality control.
All alignments mentioned as per geometric alignment test IS:2310-1963.
Guarantee for one year against any manufacturing defect.
Expanding type clutch drive in all geared machine to ensure perfect grip.
