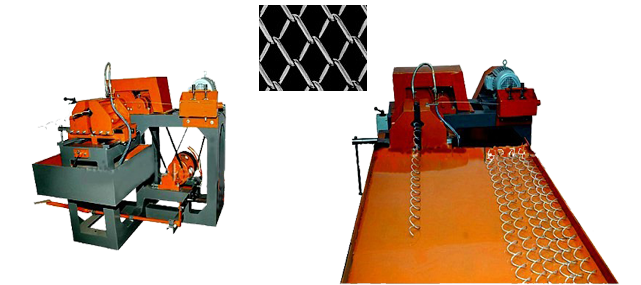

Chain Link Fence Making Machine






Model: CLF-4
Mesh Capacity: 25 - 150 mm
Thickness: 2 - 4 mm
Width: As per requirement
Production Capacity: 8.0 to 8.5 m/min
Electric Motor: 3 HP
Net / Gross Weight: 550 / 900 kg
Overall dimensions: 1.7 x 1.4 x 1.4 m
Shipping Volume: 3.50 m3

Standard Equipment:
3 HP Motor, set of tooling for one mesh size, Catchment Table, Coil Stand

Features

  • Semi Automatic Machine
  • Cutting and Knuckling (weaving) by manual process
  • Three Speed machine (with 3 step pulley)
  • Slow Speed for mesh size: 100 to 150 mm
  • Medium Speed for mesh size: 50 to 90 mm
  • High Speed for mesh size: 25 to 45
  • According to IS : 2721 : 2003
  • Precisely Designed for fencing purposes
  • Protect the area from the intrusion of wild animals
  • High strength
  • Anti corrosive
  • Highly rigid

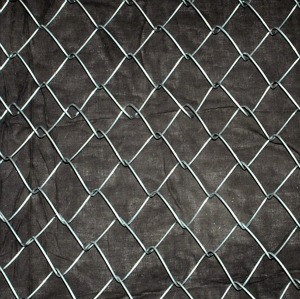

  • Chain link fencing is made in all sizes from 1.5 inch to 7 inch and in all size wires from 2mm to 5mm
  • We also make PVC coated chain link fencing


NOTE: The machine can also produce barbed wire from 14 or 15 or 16 or 17 Gauge wire (2.0 to 1.4 mm diameter) at the cost of production capacity.
